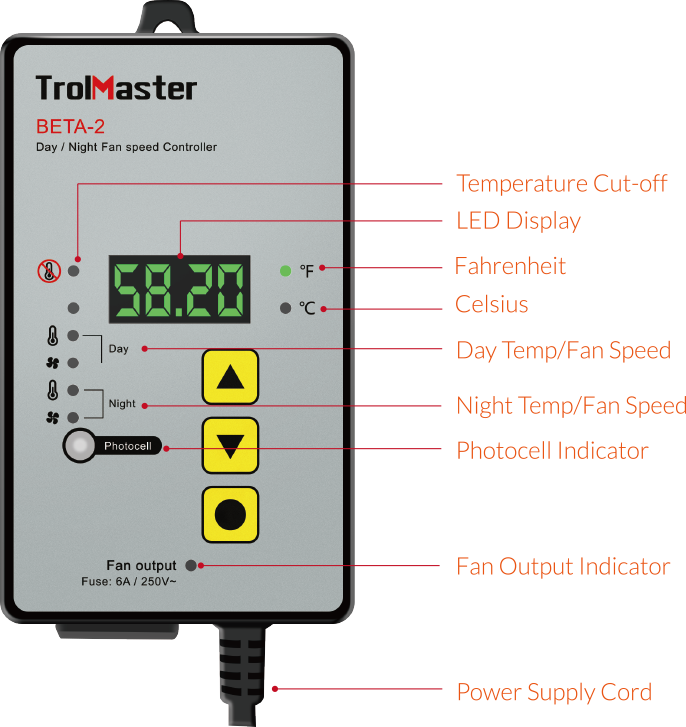

Overview
Thank you for purchasing the TrolMaster BETA-2 Fan Speed Controller. The BETA-2 is a simple and affordable way to control your fan. Choose your desired fan speed and tempeature setpoint,when the temperature is lower than the setpoint, the controller will automatically maintain that specified fan speed. When the temperature is higher than the setpoint, the controller will output 100% power to the fan. When the temperature is lower than the cut-off setpoint, the controller will shut down the fan. A built-in photocell located on the controller automatically detects the day and night status, controlling the fan in day/night mode separately. A remote termperature sensor with 16ft long cable allows close placement to the plant canopy.
Features
  • Built-in Photocell detecting day & night status
  • LED display, easy operation
  • Increases or decreases fan speed based on setpoint.
  • Temperature control range is 41°F to 95°F
  • Sensor with 16ft long cable for close placement to the plant canopy
  • 3 year warranty
    • Installation
  • Mount the Controller on wall, place the ensor in a well-ventilated area.

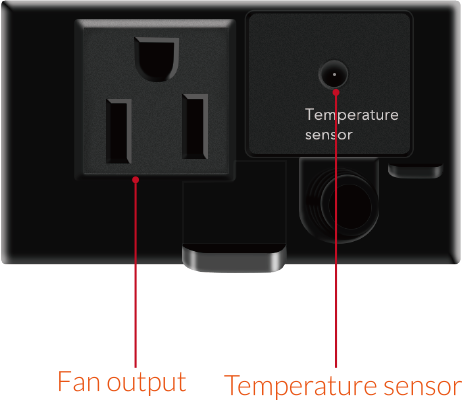

  • Connect the temperature sensor to the controller.
  • Plug the Controller into an AC wall outlet.
  • Program the desired settings before connecting to your fan
  • Connnect a fan to the controller. Ensure that the fan has the proper voltage (120V) and not exceeding its max amperage rating (6A).
    • Operation Instructions
    1. Reading Temperature
    a . When power turn on, the LED will display the current termperature.

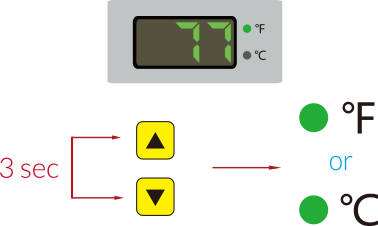

    b . To change between the Fahrenheit and Celsius, press UP button and DOWN button at the same time for 3 seconds, the or LED indicator will be flashing alternately.
    2. Set Cut-off Temperature

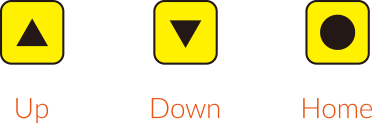

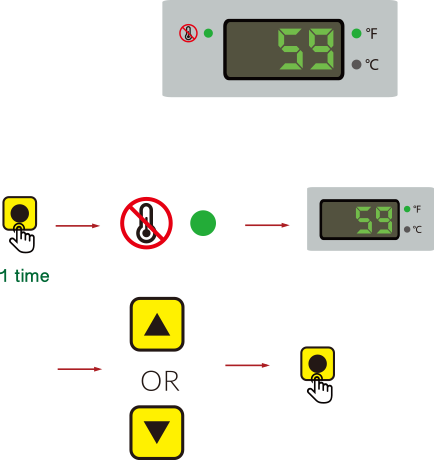

    Press HOME button one time, the LED will be blinking, the LED displays the current cut-off temp setpoint. Press UP button or button to increase or decrease the setting.

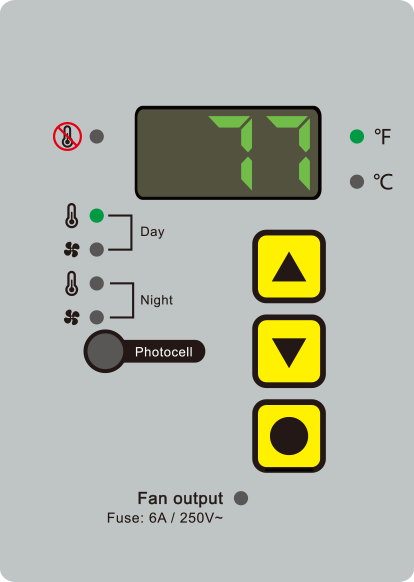

    3. Set Day Temperature

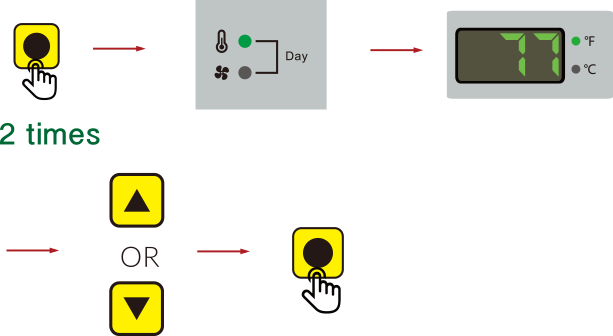

    Press HOME button twice, the LED will be blinking, the LED displays the current day temperature setpoint. Press UP button or DOWN button to increase or decrease the setting.

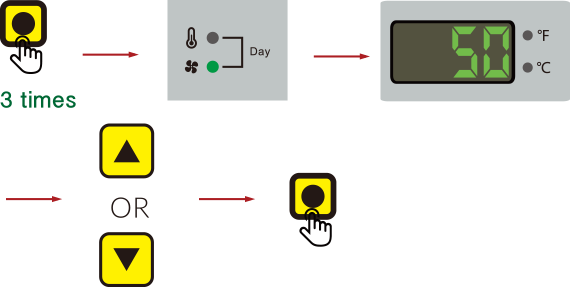

    4. Set Day Fan Speed

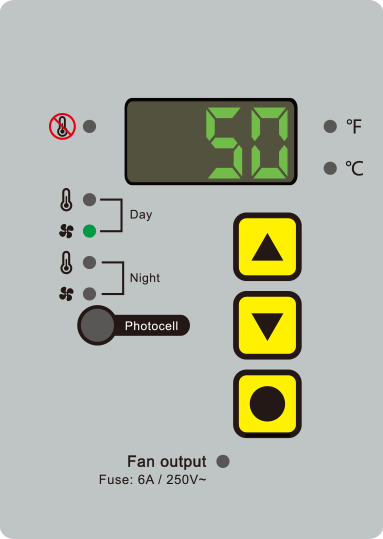

    Press HOME button 3 times, the LED will be blinking, the LED displays the current day fan speed percentage. Press UP button or DOWN button to increase or decrease the setting.

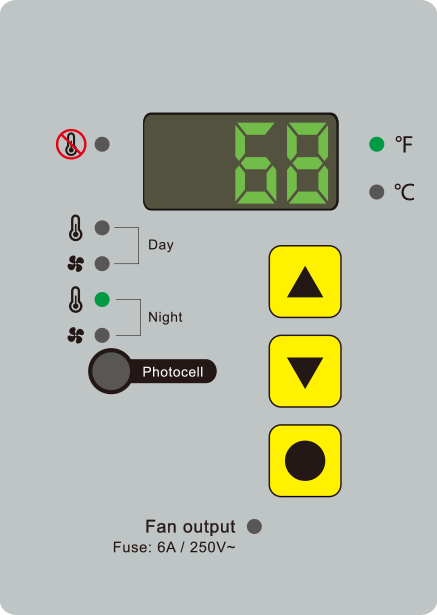

    5. Set Night Temperature

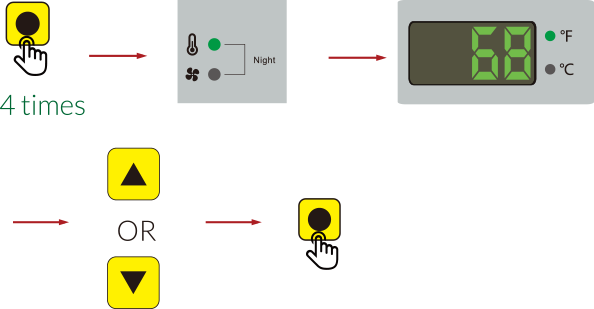

    Press HOME button 4 times, the LED will be blinking, the LED displays the current night temperature setpoint. Press UP button or DOWN button to increase or decrease the setting.

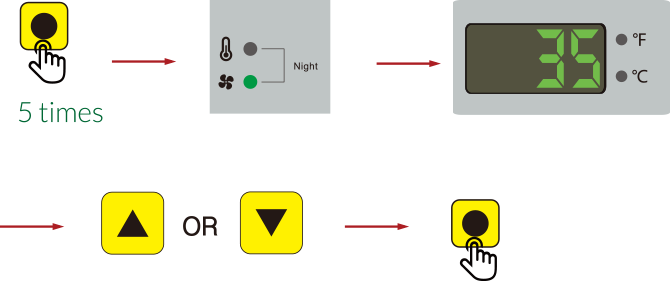

    6. Set Night Fan Speed

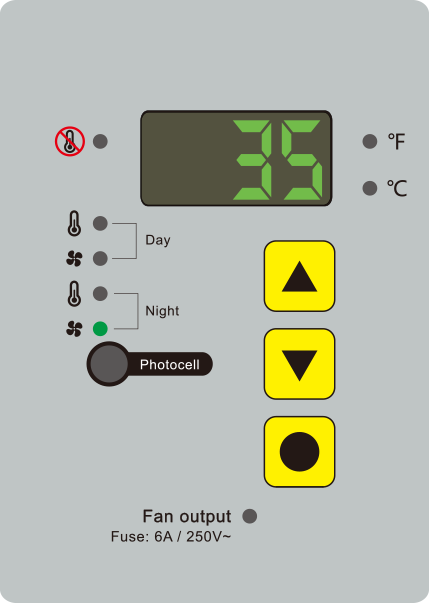

    Press HOME button 5 times, the LED will be blinking, the LED displays the night fan speed percentage. Press UP button or DOWN button to increase or decrease the setting.

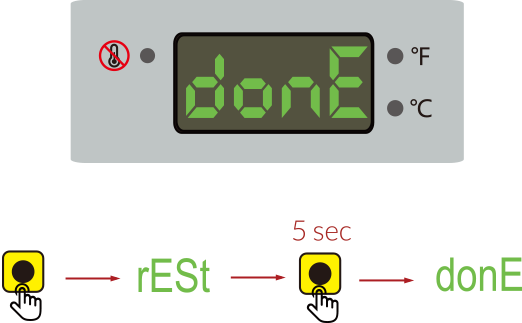

    7. Restore the Factory Settings

    Press and hold HOME button before plugging the Controller into wall outlet. Press the controller, the LED display " rESt " and blinks. Keep holding the HOME button for 5 seconds until the LED displays " donE ".
