HYDRO‑X SERIES
The Brain of Your Grow Room for Precision Control
One System
Total Command for Maximum Yield
“The Brain of Your Grow Room”
Unify your grow with the Hydro‑X. Control climate and connected devices
remotely through TM+ Pro, with web-based access available on Hydro-X Pro.
Environment
Climate Command
Automate a single grow zone with plug-and-play control of temperature, humidity, and CO₂. The Hydro-X Pro (HCS-2) adds advanced ramp-up and ramp-down settings.
Irrigation
Substrate & Nutrient Automation
The Hydro-X series automates irrigation and fertigation, with up to 50 schedules per day per module on the Hydro-X Plus (HCS-3) and real-time substrate monitoring on the Hydro-X Pro (HCS-2).
Lighting
Advanced Light Management
The Hydro-X series compatible with a wide range of commercial grow lights through TrolMaster LMA adapters. Hydro-X Plus and Hydro-X Pro add advanced functions including DLI control, group control, spectrum tuning, and cloud effects with compatible ThinkGrow fixtures.
Airflow
Total Ventilation & HVAC Control
The Hydro-X series can control compatible exhaust, intake, HVAC, and air-conditioning equipment through device stations/adapters.. The Hydro-X Pro (HCS-2) adds VFD-1 control for industrial 3-phase fans.
Modular Simplicity
Pro-Level Automation Made Easy
“An intuitive interface designed for growers.”
Stop fighting complicated software. Hydro-X offers a user-ready interface that removes the technical barriers to professional indoor climate management.
-
No Coding or Programming: Use “click-and-grow” logic to set parameters—no engineering degree required.
-

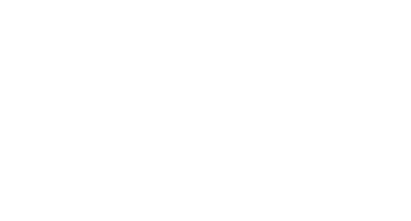

Plug-and-Play (RJ12): Connect compatible sensors and device stations using RJ12 cabling.
-
Free TM+ Pro App: Full remote oversight and 24/7 data logging with zero monthly subscription fees.

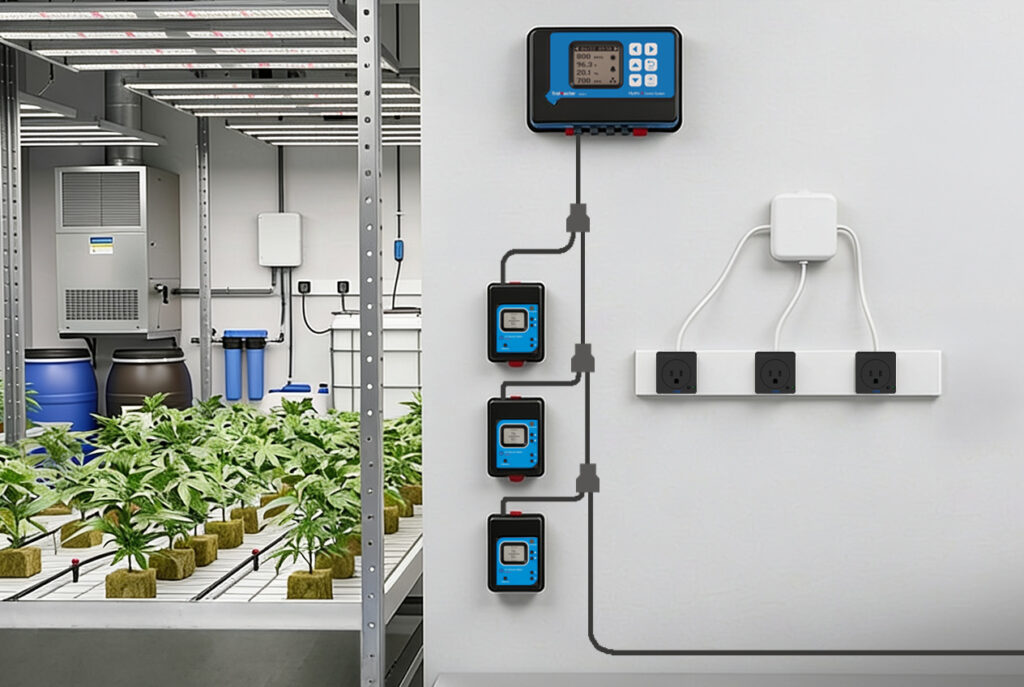

Scalable Modular Design
Modular Design: Grow As You Go
“Start with what you need and expand your system as your facility grows.”
Professional-grade automation is finally accessible. This modular system ensures you only pay for what you need today while staying ready for tomorrow.
-
Entry-Level Price: Get started with industrial-grade precision for a low initial investment.
-
Massive Capacity: Each controller supports a scalable range of compatible device stations within its rated capacity.
-
Simplified Installation: Designed for easy self-setup.
Lighting Intelligence
Advanced Lighting Control for Optimized Crop Performance
“Optimize every photon with dual-channel precision and nature-mimicking automation.”
Deliver the right light at the right time with precise, scalable control. Fine-tune intensity, spectrum, and transitions to create more consistent growing conditions and support better crop performance.
-
Dual-Channel Versatility: Control up to 512 fixtures across two independent lines.
-
Spectrum Mastery: When paired with ThinkGrow LEDs, unlock the ability to adjust individual spectrum channels to support stage-specific spectral strategies and plant morphology.
-
Nature Simulation: Help reduce abrupt lighting transitions and associated environmental stress. with Sunrise/Sunset ramping and Cloud Simulation on HCS-2 and HCS-3 that mimics natural outdoor transitions.
All-in-one grow control:
Automate, optimize, monitor, and scale with ease.
Improve Efficiency with Precision Control
Replace timers with data-driven automation to reduce waste and optimize light and irrigation.
Automated Environmental Control
Automatically controls connected equipment to maintain configured climate and CO₂ setpoints. while you monitor and get alerts remotely via the TM+ Pro app.
Modular DIY Setup
Plug-and-play RJ12 design delivers professional-grade automation with easy setup and scalable expansion as you grow.
Grow in your POCKET!
All-in-one control and monitoring tool on smart phone.
Get the app now on the app store and google play
Sensors Line

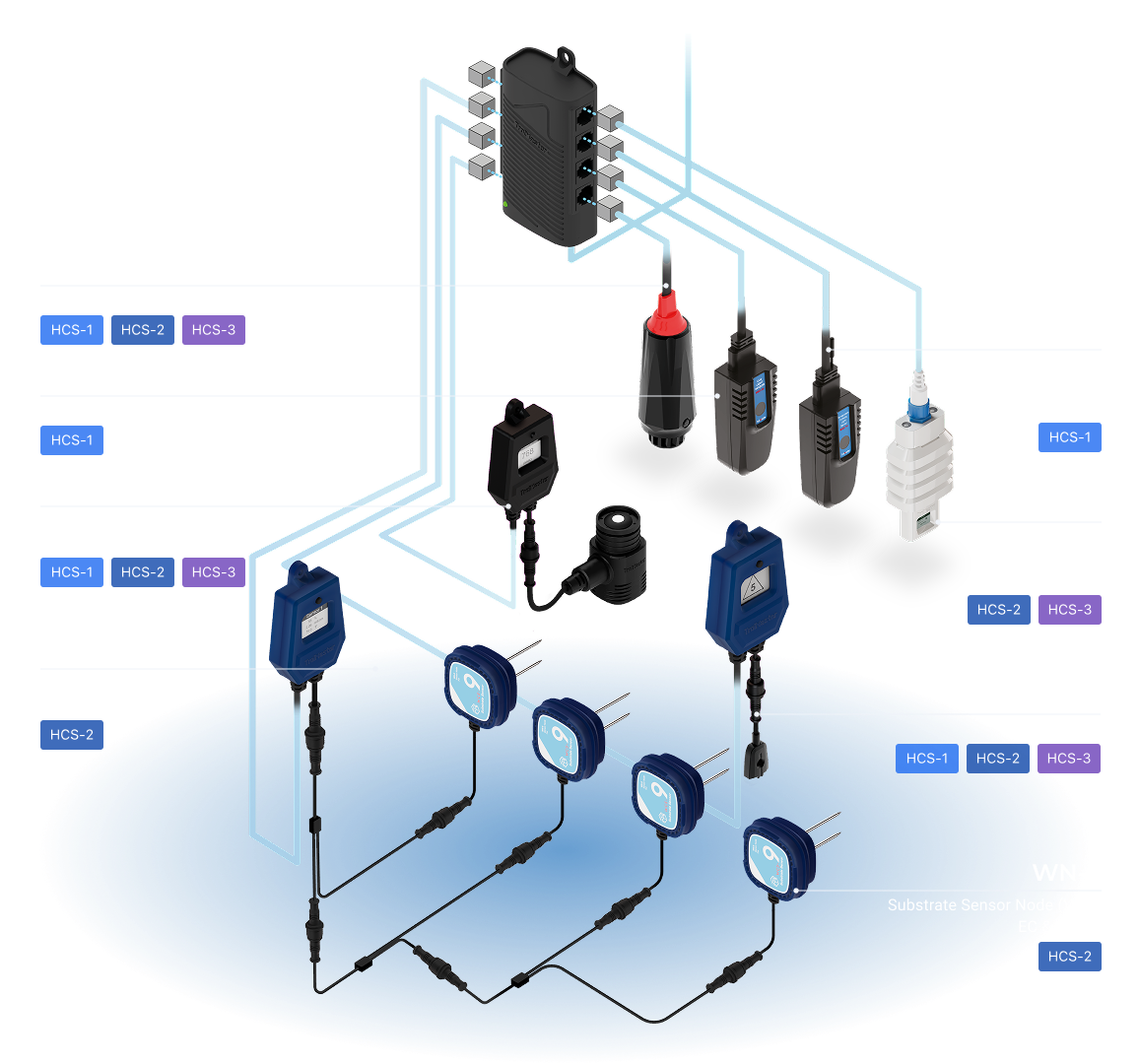

The Hydro-X control system’s sensor line is vital for environmental monitoring and automated device control. Compatible sensors monitor parameters including temperature, humidity, CO₂, light, water leaks, and smoke, connect to the main controller via daisy-chained RJ12 cables, transmitting environmental data.
This real-time data allows the main controller to automatically manage device modules and maintain user-defined environmental setpoints.
Control Modules

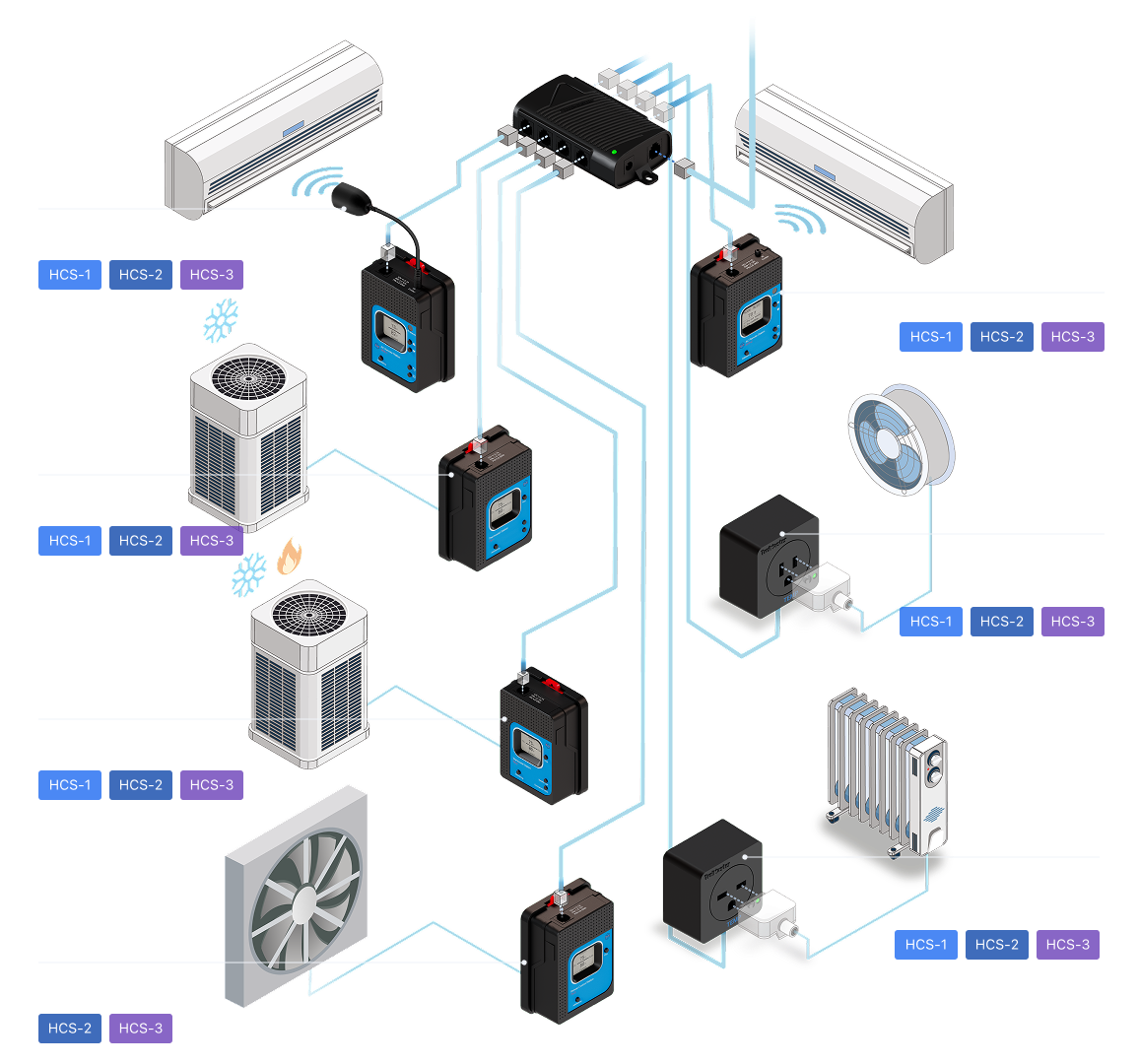

The Hydro-X system uses sensors and device stations to automate temperature control. The main controller monitors air temperature against day/night setpoints, signaling stations to manage HVAC, mini-splits, or heat pumps. With adjustable modes and cycle delays, the system ensures precise, modular climate regulation.
Control Modules

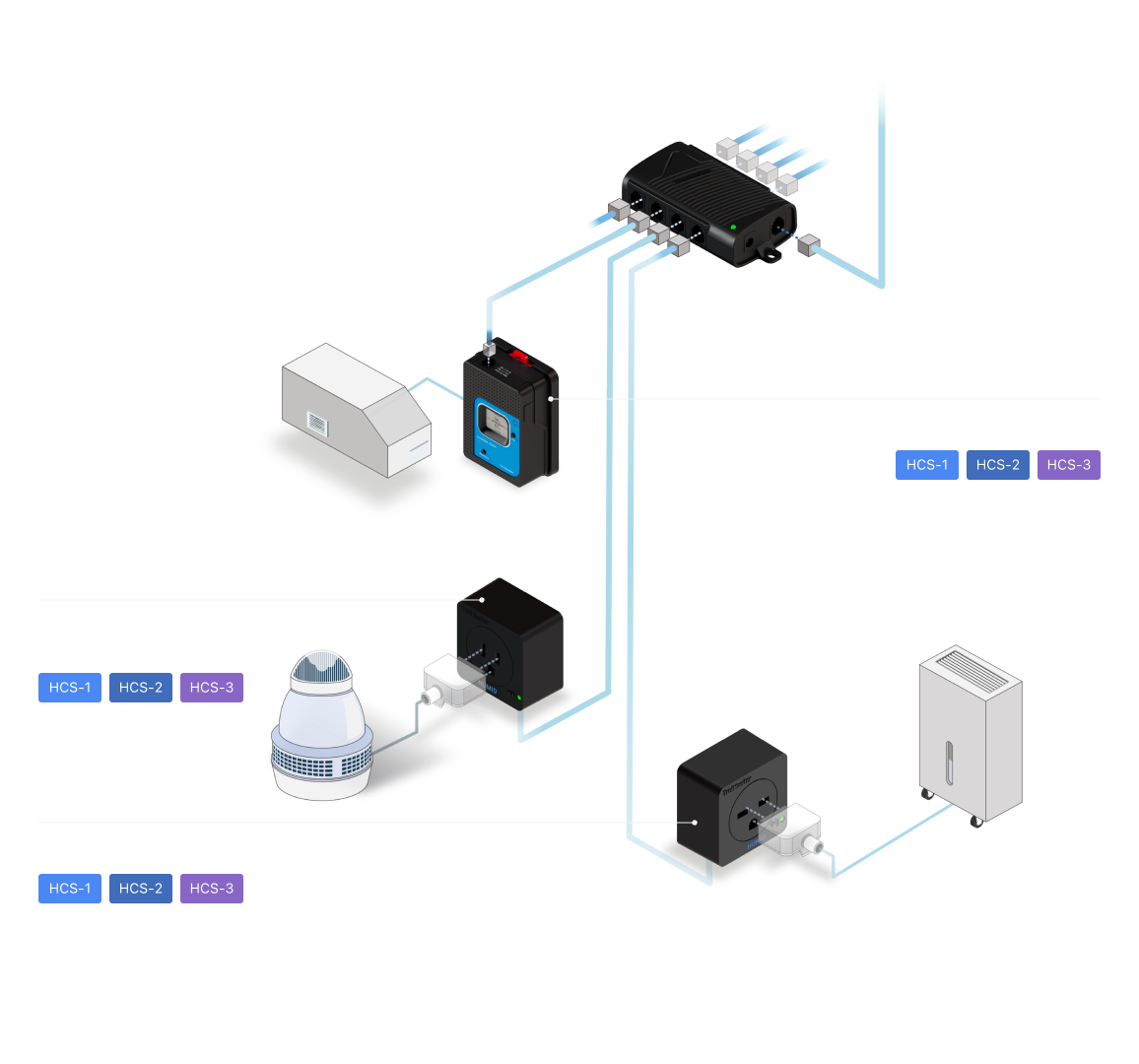

The Hydro-X system regulates humidity by activating equipment based on real-time sensor data and user-defined Day/Night setpoints. Modules connect via daisy-chained RJ12 cables and feature adjustable time delays for precise control. If humidity levels breach programmed thresholds, the system sends instant alerts directly to the user’s smartphone.

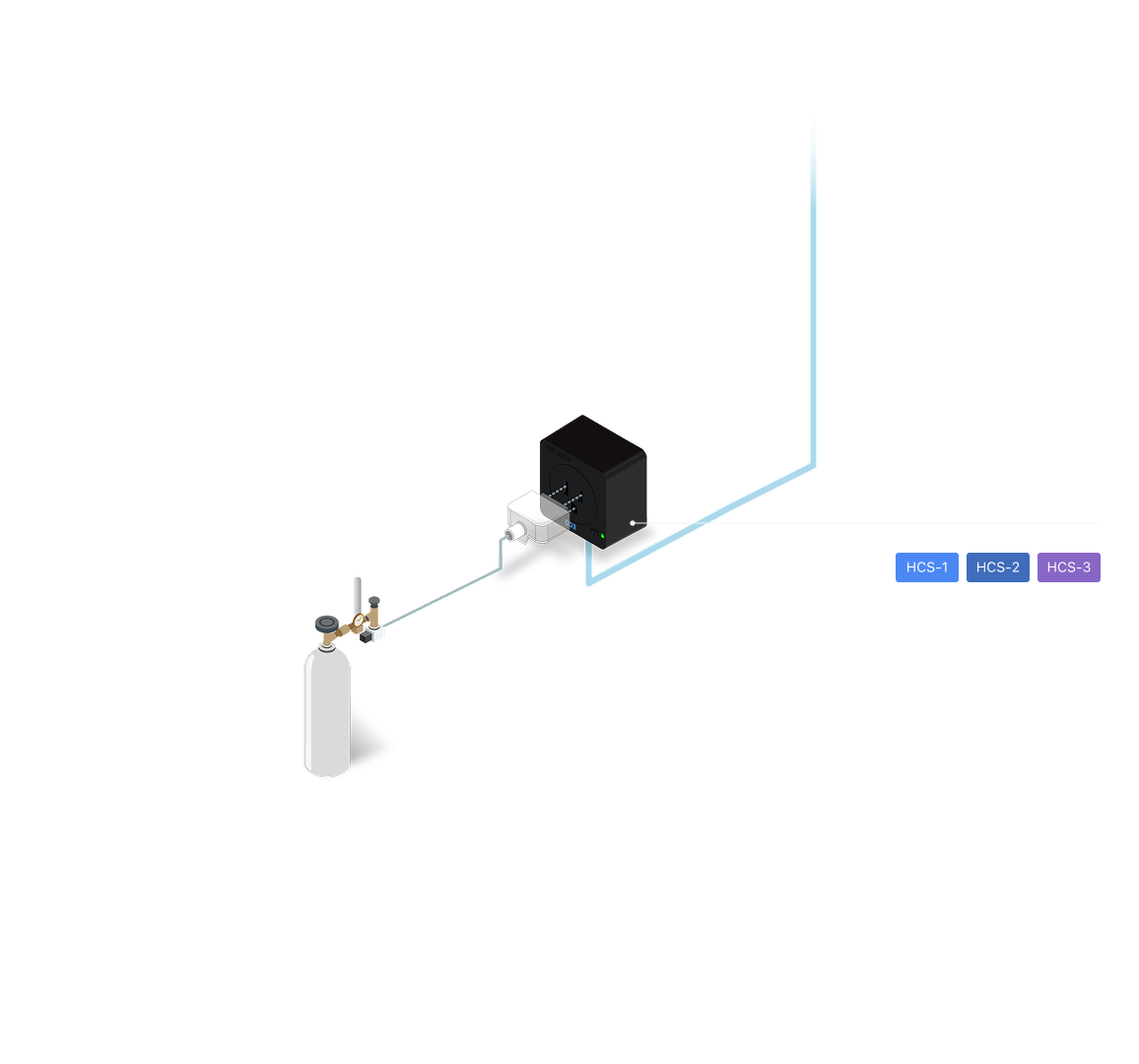

Control Modules
The Hydro-X system uses a CO2 sensor and Day/Night setpoints to automate generators, regulators, or exhaust fans. It features Fuzzy Logic for precise regulator control and sends alerts when CO₂ levels exceed user-defined thresholds.
Control Modules

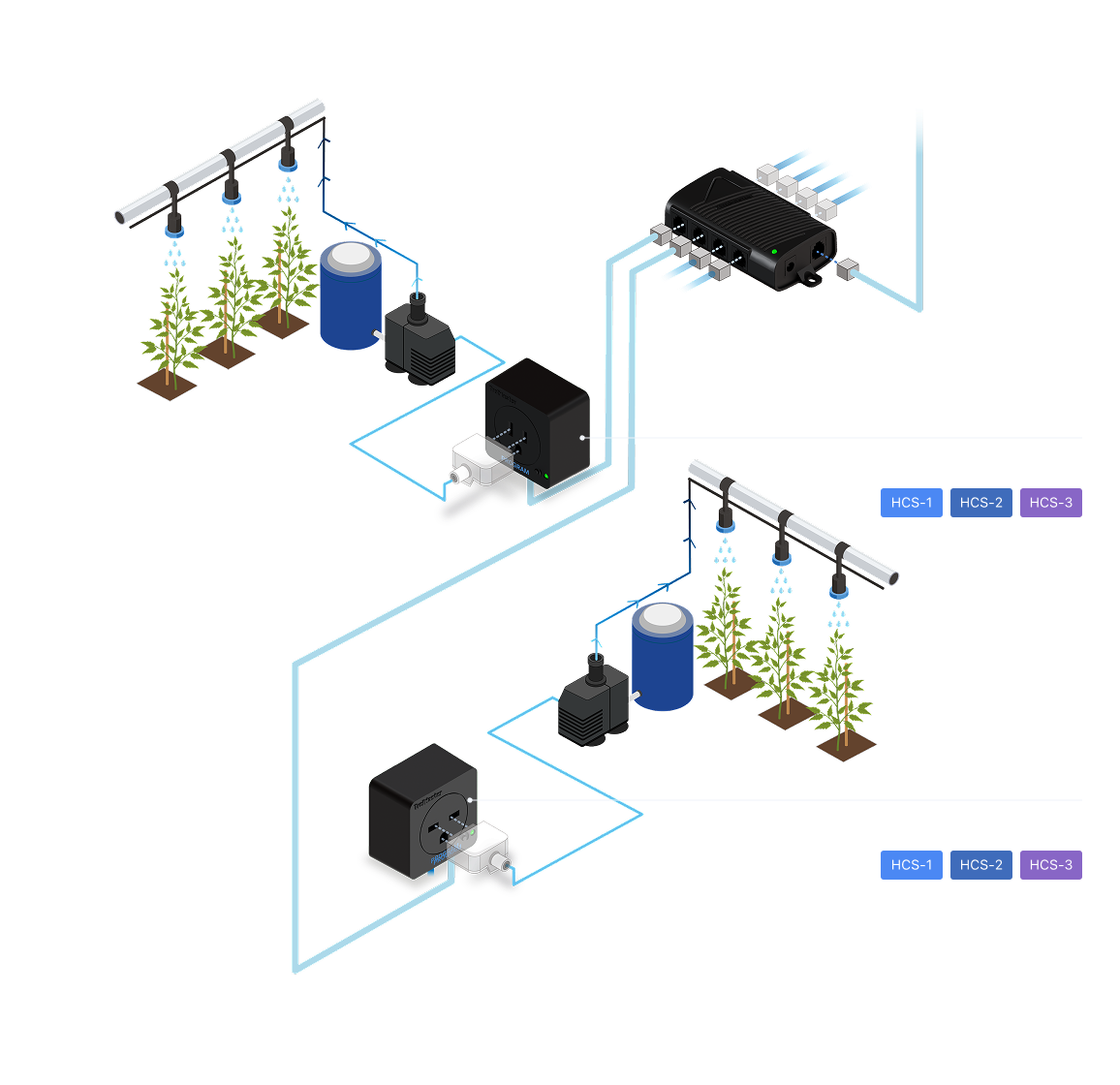

Hydro-X program stations provide time-based control for fans or pumps, independent of sensors. Connected via daisy-chained RJ12 cables, these modules offer two modes: By Schedule for continuous on/off times and By Recycle for repeating cycles with specific durations and daily counts.

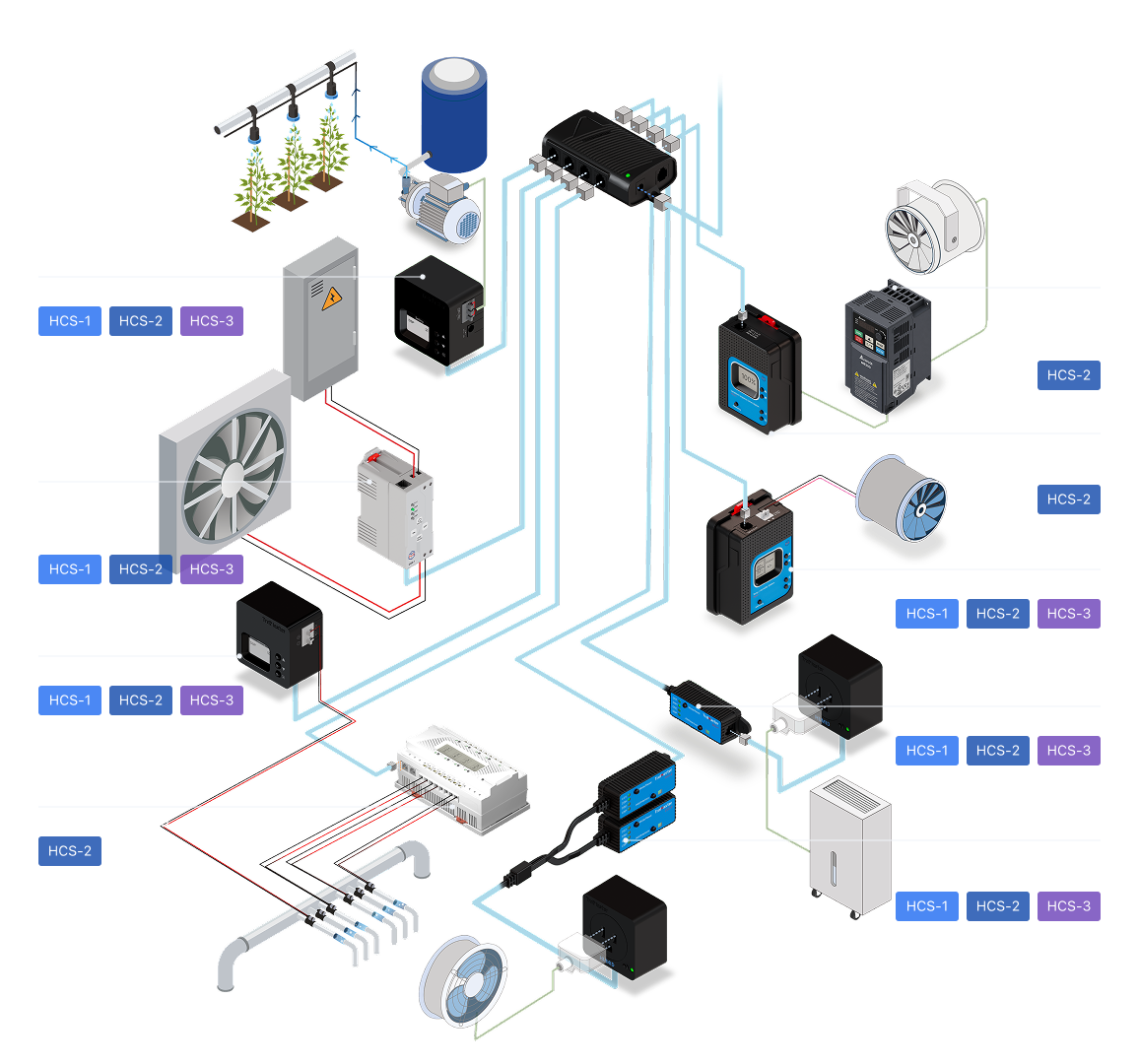

Control Modules
Hydro-X auxiliary units provide specialized management via dry-contact, relay, or low-voltage control. Using Interlock settings, these adapters can coordinate devices in parallel or series across one or two control systems. This flexible, dual-control capability provides flexible coordination of compatible devices across supported control configurations to maximize equipment efficiency and automation.
Control Modules

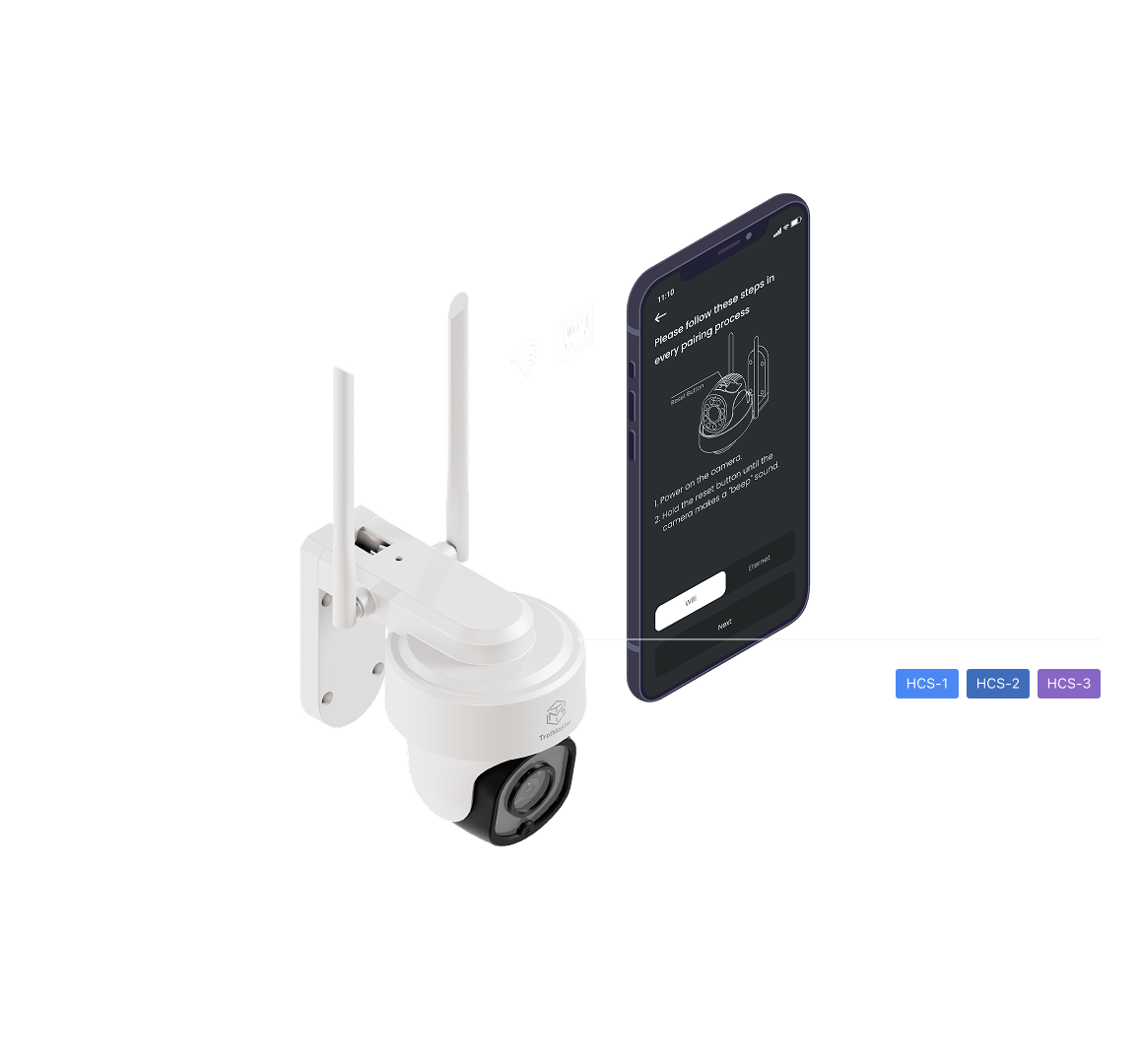

The TC-2 Grow Camera functions as the visual companion to the Hydro-X environmental control system (HCS-1, HCS-2, HCS-3), providing a “one-stop monitoring” experience via the TM+ Pro App. In this setup, the Hydro-X acts as the “brain,” managing the complex automation of climate, CO2, and lighting, while the TC-2 serves as the “eye,” offering real-time visual confirmation of plant health and room operations.
Lighting Control

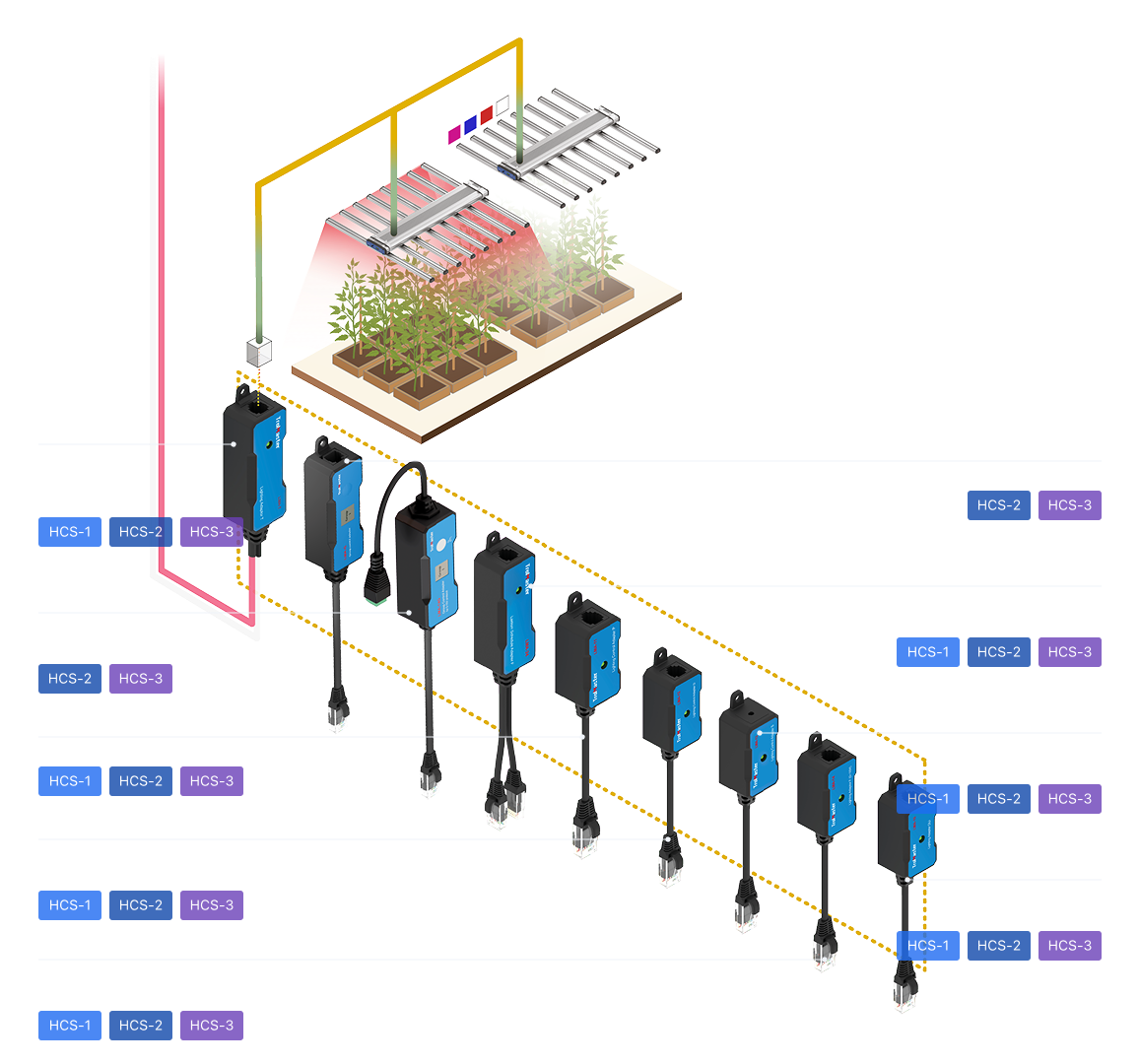

The Hydro-X system features two independent channels to manage different lighting setups or spectrums simultaneously, controlling up to 512 fixtures. By daisy-chaining via various adapters, users can customize timers, dimming, and power levels per channel. When paired with ThinkGrow LEDs, the system unlocks advanced controls like spectral adjustment, grouping, and cloud simulation for optimized plant health.
Lighting Control

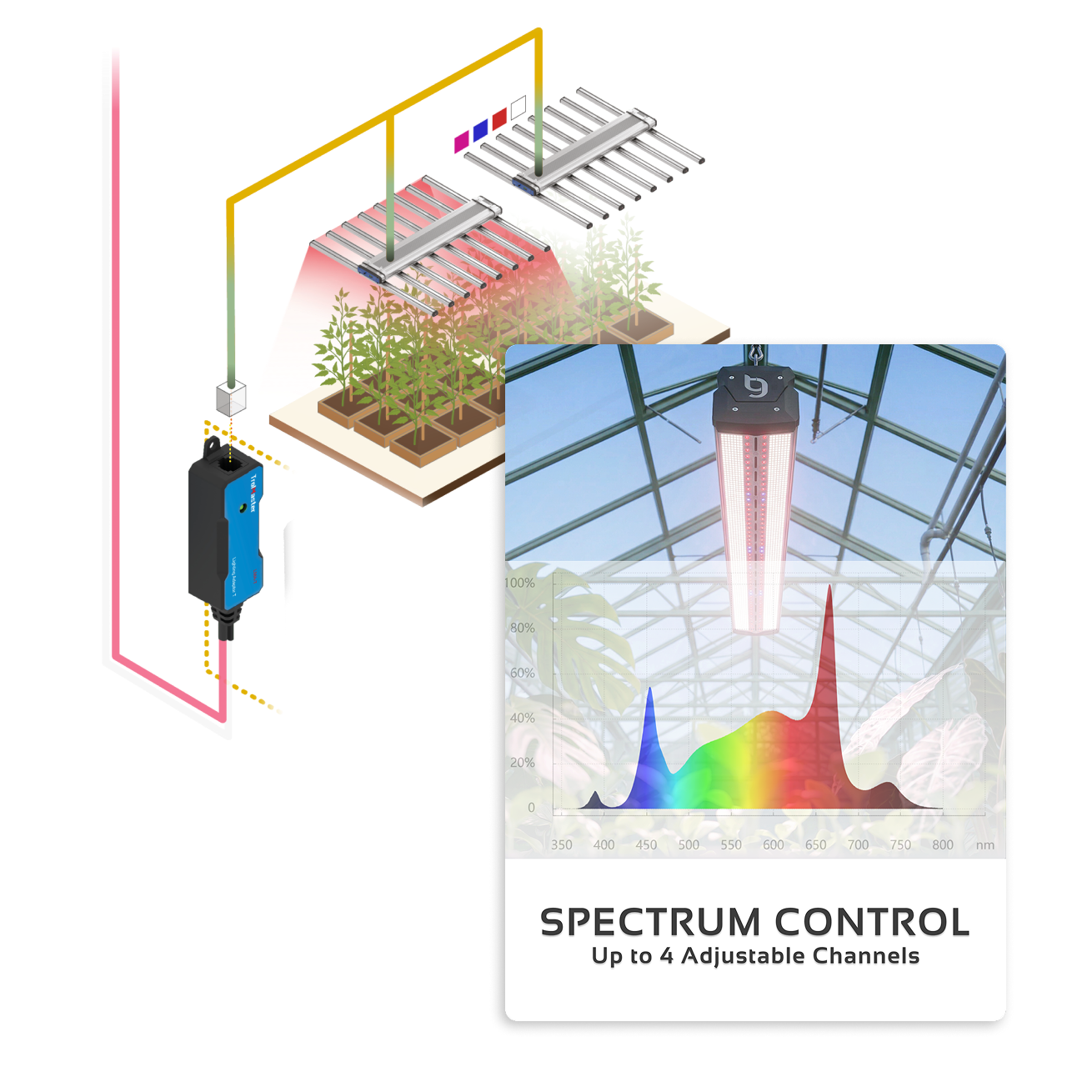

Spectrum Control
The Hydro-X system offers advanced spectrum tuning when paired with compatible fixtures like ThinkGrow LEDs, allowing growers to manipulate specific light wavelengths to match plant growth stages. By adjusting the intensity of individual color channels—such as red, blue, and far-red, users can tailor spectrum settings to different growth stages and cultivation strategies. These precise spectral adjustments can be scheduled throughout the day, providing a dynamic lighting environment that mimics natural sunlight for superior crop quality.
Lighting Control

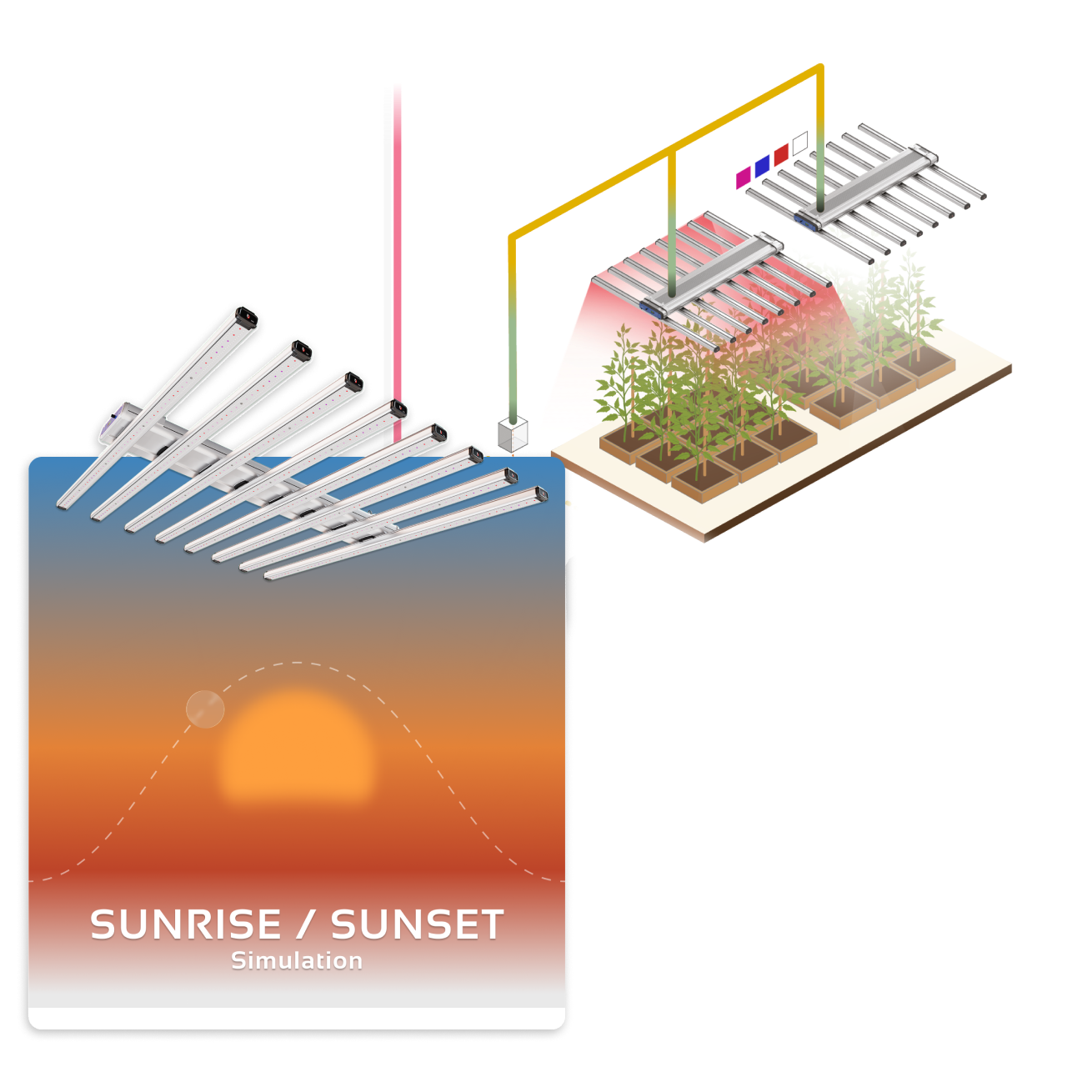

Sunrise/Sunset Simulation
The Hydro-X system features a sunrise/sunset simulation that gradually ramps light intensity up or down at the beginning and end of each cycle. By mimicking the natural transition of the sun rather than switching lights instantly, the system can help reduce abrupt lighting, temperature, and humidity transitions. This gentle acclimation promotes healthier transpiration and more consistent growth patterns, providing a more natural and stable environment for high-value crops.
The Right Tools
For Every Grow
| Hydro-X (HCS-1) | Hydro-X PLUS (HCS-3) | Hydro-X PRO (HCS-2) | |
|---|---|---|---|
|
Best For
|
Hobbyist / Single Room
|
Advanced Light Control
|
Professional Commercial
|
|
Display
|

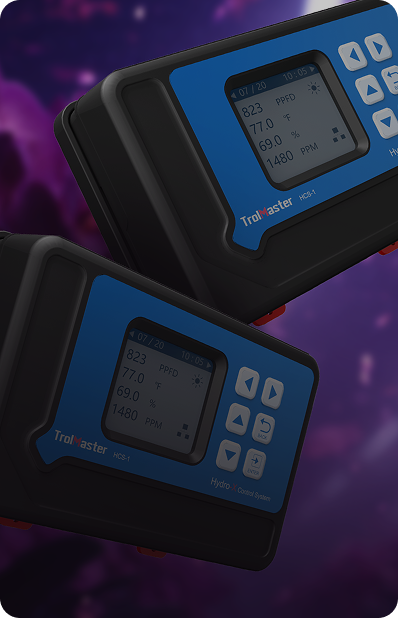

Backlit LCD Display
|

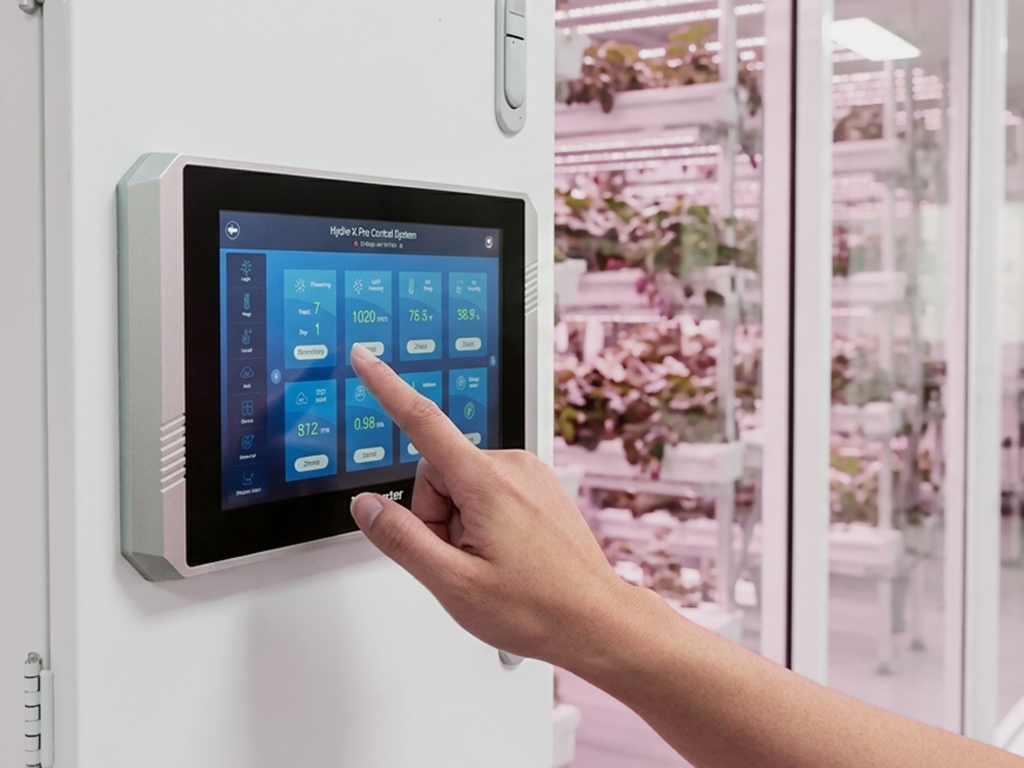

7” LED Touchscreen
|
10.1” LED Touchscreen
|
|
Remote
|
App
|
App
|
App & Web-based Tool
|
|
Multiple Zone
|
-
|
Up to 6 zones
|
Up to 50 zones
|
|
In-box Climate sensor
|
3-in-1 Sensor (MBS-TH)(Temp/Humidity/Photocell)
|
4-in-1 Sensor (MBS-PRO)(Temp/Humidity/CO2/Photocell)
|
4-in-1 Sensor (MBS-PRO)(Temp/Humidity/CO2/Photocell)
|
|
—
|
|
|
|
|
Climate Sensor
|
Max. 1pc(Max. add 1pc CO2 Sensor)
|
Max. 6pcs
|
Up to 50 different sensors in combination
|
|
Quantum PAR Sensor
|
Max. 1pc
|
Max. 1pc
|
Up to 50 different sensors in combination
|
|
Water Detector
|
Max. 5pcs
|
Max. 10pcs
|
Up to 50 different sensors in combination
|
|
Smoke Detector
|
Max. 5pcs
|
Max. 10pcs
|
Up to 50 different sensors in combination
|
|
—
|
|
|
|
|
Temperature Device
|
Max. 4pcs
|
Max. 8pcs
|
Up to 50 different control modules in combination
|
|
Humidity Device
|
Max. 2pcs
|
Max. 8pcs
|
Up to 50 different control modules in combination
|
|
CO2 Device
|
Max. 2pcs
|
Max. 4pcs
|
Up to 50 different control modules in combination
|
|
Program(Timer) Device
|
Max. 9pcs
|
Max. 12pcs
|
Up to 50 different control modules in combination
|
|
—
|
|
|
|
|
Lighting Channels
|
2 Channels: Line 1 & Line 2
|
2 Channels: Line 1 & Line 2
|
2 Channels: Line 1 & Line 2
|
|
Sunrise/Sunset
|
✓
|
✓
|
✓
|
|
DLI Control
|
|
✓
|
✓
|
|
Group Control
|
|
10 Groups
|
10 Groups
|
|
Spectrum Tuning(ThinkGrow LEDs)
|
|
✓
|
✓
|
|
Cloud Effect(ThinkGrow LEDs)
|
|
✓
|
✓
|
